Air andling units



Main features & plus:

Clivet air handling units are designed to be employed in lots of applications: commercial, civil, business applications as far as in hotels, congress centres, theatres, fitness centres.

They are also suitable for critical uses such as hospitals, high tech industry, clean rooms, pharmaceutical or food industry, where the requirements for cleaning and hygiene are mandatory.

Certifications: AHRI and Eurovent
Eurovent Certified Unit

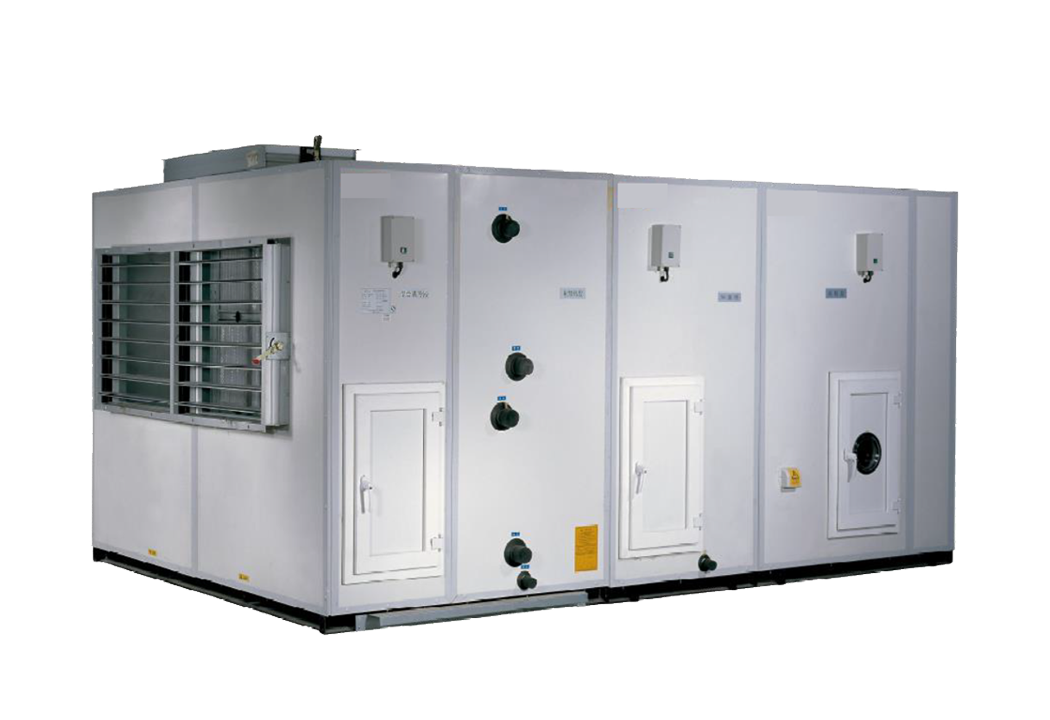

AQX Series
  • Air Flow Range: 500-160,000 m3/h;
  • 50, 60mm insulation thickness for optional;
  • more functions such as heat pipe, recovery wheel, etc.;
  • thermal transmittance: T2;
  • thermal bridging of casing: TB2/TB3;
  • DX type or water coil;
AHRI Certified Unit
CKZ Series
  • Air Flow Range: 2680-178,708 m3/h;
  • 25mm and 50mm insulation thickness for optional;
  • thermal transmittance: T2;
  • thermal bridging of casing: TB2;
  • DX type or water coil.

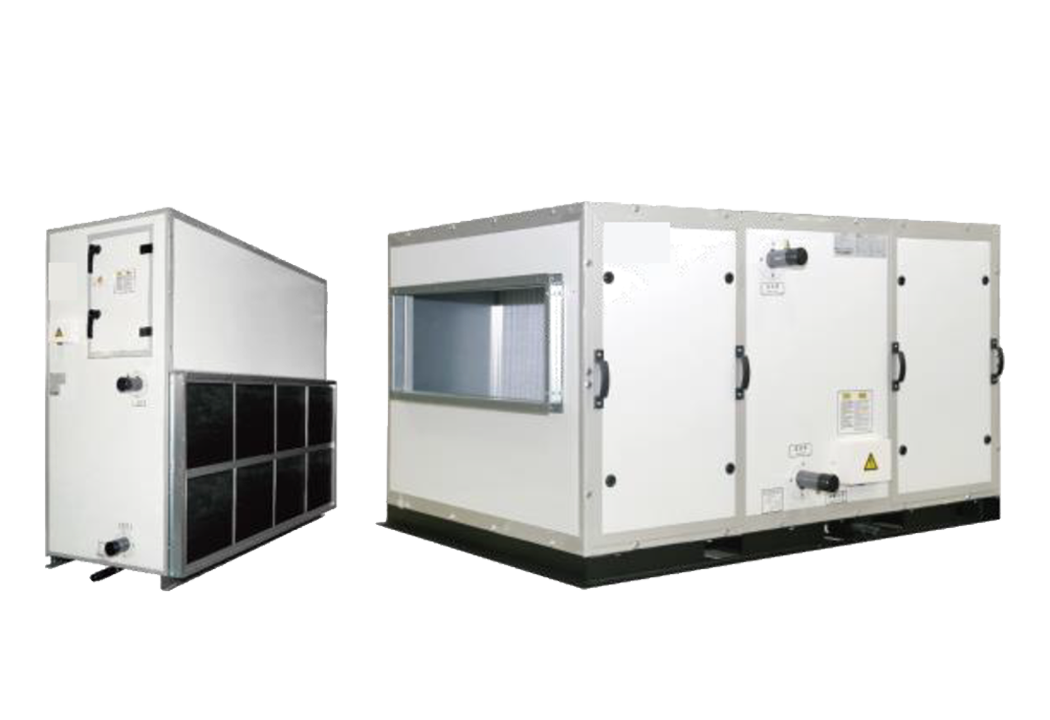

Air Handling Units
partial customized
  • type: Horizontal/Vertical
  • air Flow Range：2000~18,000 m3/h
  • external Static Range：120-520Pa
  • thickness：25/50 mm
  • filter：G3/G4，F5-F7
  • coil：4/6 Row
